Twin electronic twisting distance twisting machine horizontal double-disc rewind and unwind wire

Name: Twin electronic twisting distance twisting machine horizontal doubledisc rewind and unwind wire
Brand: HOOHA
Price: 69500 USD

Quality Twin electronic twisting distance twisting machine horizontal double-disc rewind and unwind wire for sale

Brand Name : HOOHA

Model Number : HH-300/500/650/800/1000

Certification : CE ISO

Place of Origin : Dongguan，China

MOQ : 1 unit

Price : 69500 USD

Payment Terms : L/C, , T/T, Western Union, MoneyGram

Supply Ability : 10 units per month

Delivery Time : 30 working days

Packaging Details : PE Foam

Usage : Twisting

Diameter of bobbin : Ф500 type, minimum for Ф400

Spool circumference : 0.7M-1.5M

Wire diameter : 0.8~1.7mm

Electric Element : Siemens and Omron

Speed range : MAX1800RPM

Drive power : 5.5KW

Warranty : 12 Months

Contact Now

Twin electronic twisting distance twisting machine horizontal double-disc rewind and unwind wire

MORE INFORMATION

Youtube: https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYowhttps://www.youtube.com/channel/UCKBDFWwJ8fuEs6P6T6CNF6g

Products Description

Specification
Structure type	One-piece double-pitch constant tension twisting machine
Speed	MAX1800RPM
Bow material	65Mn spring steel
Distance range	15~75mm
Applicable bobbin	Ф630 type
Applicable wire diameter	Ф1.6~4.0mm(Outside diameter after stranding)
Tension type	Pendulum constant tension type
Tension adjustment	Pendulum arm structure, adjust the size of winding tension by adding or subtracting counterweight block
Tension range	0.1-6kg(adjustable)
Internal pickup	2HP + inverter control (FUKUTA as standard)

Tension display	Stress-sensing digital tensioner
Tension wheel diameter	Ф130
Spool lift	Pneumatic lifting
Tensioning method	Spring automatic top tightening, pneumatic open
Brake	Electromagnetic brake
Loading weight	MAX250KG
Take-up motor	0.75KW Siemens motor+inverter
Reel motor	5.5KW inverter motor + PG card (standard with Siemens Bader or specified)
Line type	Ф30 light bar row

Application:

The machine mainly apply to multiple cabling of LAN CABLE CAT5,CAT5E,CAT6A,CAT7,CAT8 signal cable twisting (fine wire ), shielding layer cable , control cable , etc . It's a highly effective machine than normal pair twisting machine .

The Wire Samples

Details Images

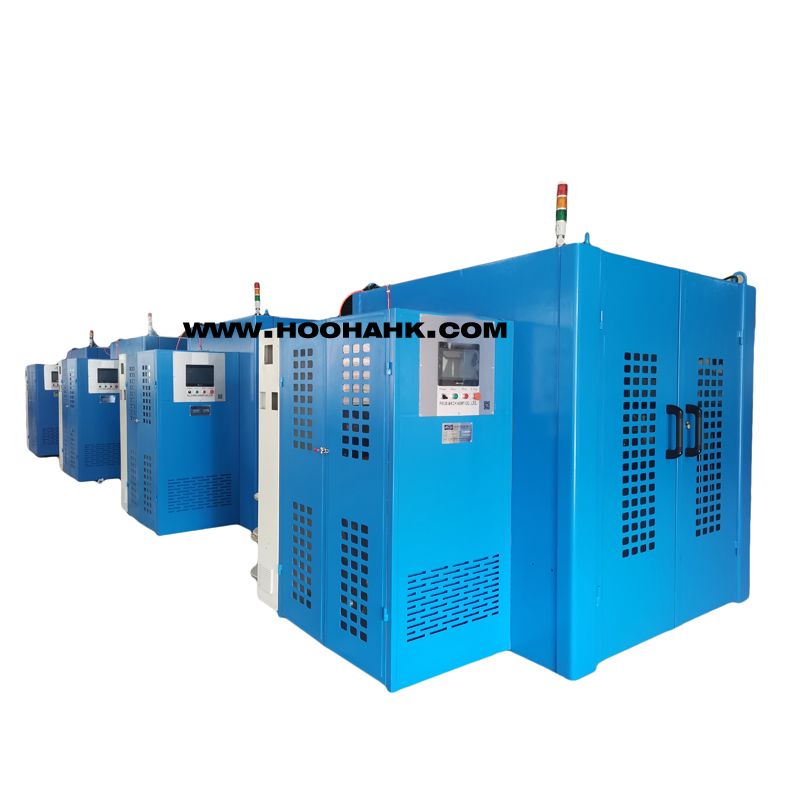

Mainframe

The tension of the unwinding and rewinding is smooth and constant from empty to full reel, and the tension value is accurate to ±5g . the stranding distance and rewind rate are controlled by PLC program, with humanized touch screen operation screen, intelligent control .

Pay-off

For prepared material that provide for the mainframe to bunching into 1 . It can be divided into 2 different type of pay-off stand :

Company Profile

Dongguan Huha Electrical machinery Co., LTD

Our aim:
  To be a world-class supplier providing wire & cable manufacturing and using solution.

  Our vision:
  To make wire & cable manufacturing and using more humanized.

  Our target:
  More professional customer service, struggle for employees’ dreams.
  We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable
  solutions and die casting products.
  Now we are continuously updating our technology, making great effort to keep improving our design level and R & D strength to
  provide customers with more superior cable and die casting solutions.

00:00

02:00

Product packaging

The plastic+wood packing

1.The usually packing way is plastic packing

The wood packing

1.The wood package will according to the customer's inquiry then design to wood packing

The fixed by steel or tap

1.The machine will fixed by the steel rope and Tap in the container

Why Choose Us

The quality and service system

10 years export experience will support our client  2.The payment way more choice
The delivery control by engineer team more on time
The quality system control by engineer more reach our clients target
The after service more humanization from HOOHA team

The supplier chain experience

Save your time on the project  2.More humanization solution for the project running
16 years professional on the cable making solution supplier chain more competition price
20 years working experience engineer team guide your cable making solution more safety and quick.

Exhibition

Shanghai fair 2014

1.The power cable making solution

2.The Fep cable making solution

3.The data cable making solution

4.The network and lan cable making solution

5.The auto cable making solution

Certifications

MIC field certification

1.HOOHA SGS field certification 2019 2.HOOHA quality and service is close to HK service standard

HOOHA HK certification

1.HOOHA HK support hooha business booming and working more efficient with our clients

HOOHA each year Company commercial certification

1HOOHA Company commercial certification

FAQ

1. who are we?
  We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),Eastern Asia(13.00%),South Asia(10.00%),South America(8.00%),Eastern Europe(4.00%),North America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

  2. how can we guarantee quality?
  Always a pre-production sample before mass production;
  Always final Inspection before shipment;

  3.what can you buy from us?
  Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

  4. why should you buy from us not from other suppliers?
  1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

  5. what services can we provide?
  Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
  Accepted Payment Currency:USD,EUR,CNY;
  Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
  Language Spoken:English,Chinese
